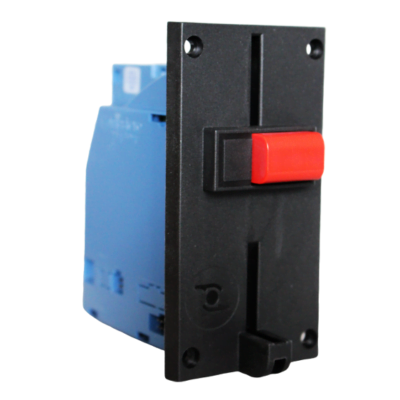

F1 Signboard for RM5 Evo / HD coin validators

Signboard for RM5 model F1 coin-operated machines with dimensions 60 x 118 [mm]. It can be mounted on Suzohapp and Comestero coin acceptors. It works perfectly with the RM5 Evolution and RM5 HD.

RM5 EVOLUTION coin acceptor

It is an advanced and modern device among available on the market. The model accepts up to 3 coins per second. It can be programmed for 59 different coin types. Their diameter can be in the range of 16-31.5 mm and the thickness can be up to 3.3 mm. A special CLONING system will allow for easy and fast cloning of settings and parameters between another devices of this type. It is also equipped with appropriate security systems that prevent the mechanical and electronic interception of coins. The program complies with EN 61000-6-3 (mainly regarding emissivity), EN 61000-6-1 (for electromagnetic compatibility) and EN 55022 (for radio disturbances). We divide the mechanics into 6 different models, each programmed in one of 18 available configurations. They help to adapt the device to the requirements of the intended use.

RM5 HD coin acceptor

This extremely modern device works at an impressive pace looking elegant at the same time. The model works very efficiently and accepts up to 6 coins per second. It is available with two different slot channels. In the first variant, it can be programmed for Euro currency coins and those whose diameter can reach a maximum of 27 mm and a thickness of 2.4 mm. In the second variant, however, it can handle coins with a maximum diameter of 31.5 mm and a thickness of 3.4 mm. It is equipped with high quality security systems, preventing the insertion of false coins and improper elements into the channel. The program complies with EN 61000-6-3 (mainly regarding emissivity), EN 61000-6-1 (for electromagnetic compatibility) and EN 55022 (for radio disturbances). We divide the mechanics into 6 different models, each programmed in one of 9 available configurations. They help to adapt the device to the requirements of the intended use.

SPECIFICATION – F1 SERIES FOR RM5 SIGNBOARDS:

• Purpose: Comestero and Suzohapp coin validators
• Models of coin-operated vending machines: RM5 Evolution, RM5 HD
• Dimensions: 60 x 118 [mm]
